HIGH PERFORMANCE GRILLE

Our HIGH PERFORMANCE Roll up Door Security Grille is designed to work at high speed, great performance and longevity. Features a reliable springless roll up grille that provide users a smooth and fast operation without sacrificing security, safety and durability.

Watch video

Roll Up Grilles

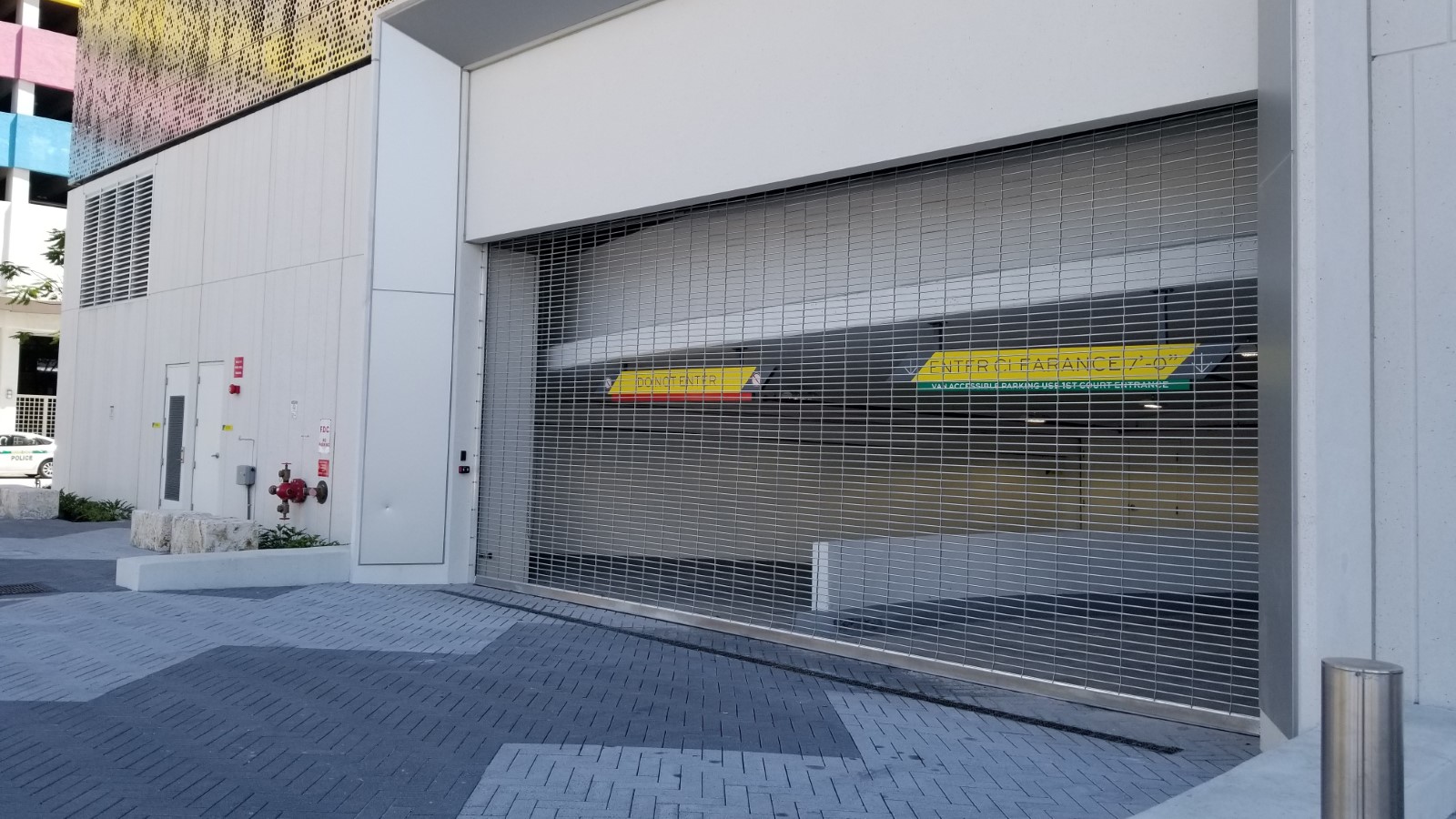

High Performance Grille.
HP GRILLE

The HP GRILLE is the more appropriated door for openings where security and fast operations are critical. Built with a VFD (Variable Frequency Drive) that manages the door at a high speed with a soft start and soft stop features to provide a smooth operation.

The grille is capable to run up to 24 inch per second, which is up to 4 times faster than regular Roll up Grilles.


 This increases your opening productivity by reducing the operation waiting time.

It high speed and reliable operation significantly reduce the time the opening is open, maximizing your area security and increasing traffic speed..

Most important, the High Performance Grille is still a Roll up Grille capable to offer you the same benefits of a standard product, such as customized pattern (straight or brick) and size (9”x2.5” standard), it can be build with fenestrated slats, custom painted with powder coat, use different safety sensors, access controls and more.


Get a Free Quote!

Components

A series of horizontal 5/16” galvanized steel rods, covered by anodized aluminum tubes (spacers) and interconnected with anodized aluminum links.

Springless barrel supports curtain and is assembled to the motor and emergency brake.

Extruded Anodized Aluminum guide with steel wall angle that support entire door weight and wind loads, while ensuring a smooth operation when opening and closing the door.

 Protective sheet metal (24 gauge steel galvanized) enclosure for the curtain, motor and emergency brake. Optional finishes are powder coat painted and Anodized Aluminum sheet.

3/16” or 1/4" steel plates to support the hood and counterbalance shaft

Extruded Anodized Aluminum tube reinforces the curtain.

Security Grille Door

Benefits

Rolling Door Manufacturing is a leading provider of door solutions for any application. The HP GRILLE model is designed for openings that require high speed operations, whether is for security reasons or to improve traffic performance.
It can be customized to meet your special project conditions, offering different size of patterns in straight or brick design. With different operation modes with sensors or access controls, and different finishes options like custom colors, let us know what you need and we'll deliver.

We are one of the highest quality Rolling Door manufactures in the US marketGet a Free Quote!

Made in USA
  1. HIGH SPEED OPERATION – Featuring a soft start and soft stop it will provide a smooth operation that will improve your productivity, reinforce your security and decrease the air exchange.
  2. SEE-THROUGH DESING - Keep full viewing of the area being protected. Allowing customer to turn a storefront into a product showcase while maintaining the safety barrier that our grilles provide.
  3. AIR CIRCULATION – Secure your area while maintaining free air circulation
  4. LONGEVITY – Designed for 300,000 cycles and offered with a 3 years limited warranty, the HP300 is built to last.
  5. RELIABLE PROTECTION - Provides reliable protection against robbery and vandalism, offering a high range of locking mechanisms with strong structural angle guides and curtain.
  6. LOW TO NO-MAINTENANCE COST! - Parts are built for heavy duty use and are tested to perform in the toughest environments with very low maintenance required.
  7. COMMERCIAL AND INDUSTRIAL USE - Ideal for parking garages, warehouses, loading docks, stores, and many other types of applications.
  8. CUSTOM BUILT - Each door is custom built to exact opening size requirements and applications.
  9. SPACE OPTIMIZATION - Convenient space saving design, door coils upward without taking away useable space.

Make your project unique

As a Rolling Door Manufacturer with over 20 years in the market, we can meet any requirement. Contact us!

Customize your Project

Configure your project completely adapted to all your specific needs. Special designs, finish, combinations, fenestrations, specific performance and more. You can contact us without any compromise.

+1 (305)-599.9977

Fast and reliable support

We develop and provide customized shop-drawings, products data, estimates and manufacturing processes in record time. Consult us.
