Rolling Door Manufacturing
Aluminum Grille Door.
~Safe and Security~
Security Grilles are excellent to safeguard your property, while keeping it visually exposed.
Its see-through design allows free circulation of air and a free visual without compromising security.
Our Aluminum Security grilles are strong, durable and attractive.
Security Grilles are excellent to safeguard your property, while keeping it visually exposed.
Our Roll up Security Grille provide an attractive and functional design that can secure your areas without blocking air, light or visibility.
A series of horizontal galvanized steel rods, spaced with aluminum tubes and interconnected with aluminum links.
Supports curtain and contains counterbalance torsion springs or band spring for assisting operation. Designed at 10,000 cycles, with the option up to 100,000 cycles for higher requirements.
Roll-formed steel guides that support entire door weight and wind loads, while ensuring a smooth operation while opening and closing the door.
Protective sheet metal (24 gauge steel galvanized) enclosure for the curtain
3/16” or 1/4” steel plates to support the hood and counterbalance shaft.
Options of a double angle Bottom Bar, one galvanized steel angle and one Aluminum angle enforces the curtain and contains the locking mechanisms or an Aluminum extruded Tubular Bottom Bar.

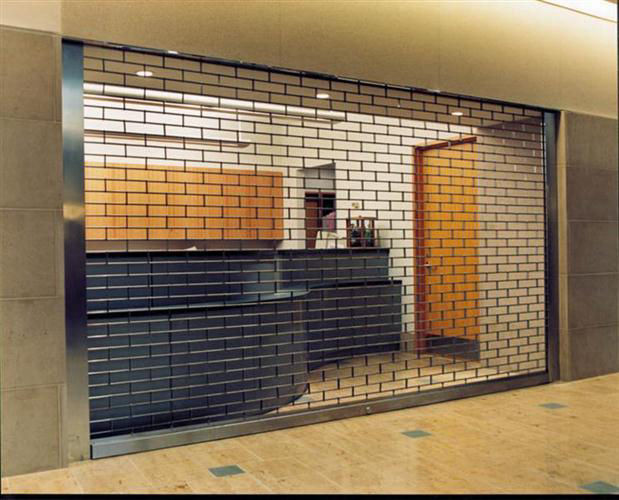

Our Security Grill is manufactured with strong 5/16" steel rods to provide a solid barrier, it is covered with Anodized Aluminum tube spacers and interconnected with Anodized Aluminum Links, both offers a great appearance that is more resistance to the elements and can be arranged in the standard 9" x 2.5" straight pattern that can be customized in size or changed to a brick pattern
It also can be build of Fenestrated slats, custom painted and installed in different mounting types to fit your needs.
We are one of the highest quality Rolling Door manufactures in the US market. Get a Free Quote!
As a Rolling Door Manufacturer with over 20 years in the market, we can meet any requirement. Contact us at!
Configure your project completely adapted to all your specific needs. You can contact us without any compromise.
We develop all engineering and manufacturing processes in record time. Consult us.
On Message feel free to include door quantities, desired clear opening width and height, door model, operation type (manual or electric), job location and as any other feature or details you are specifically looking for.
