INSULATED GARAGE DOORS

Provide energy efficiency with structural strength and durability. They offer the same benefits of our Service Rolling Doors (Heavy Duty or Medium Duty) with the added benefit of keeping thermal loss to an absolute minimum with an R-Value of 8.0.

Watch video

Rolling Door Manufacturing

Insulated Garage Door.
~Safe and Security~

Ideal solution for areas where the thermal control or sound rating is required, like refrigerated or air-conditioned warehouse or retail, studios and more.

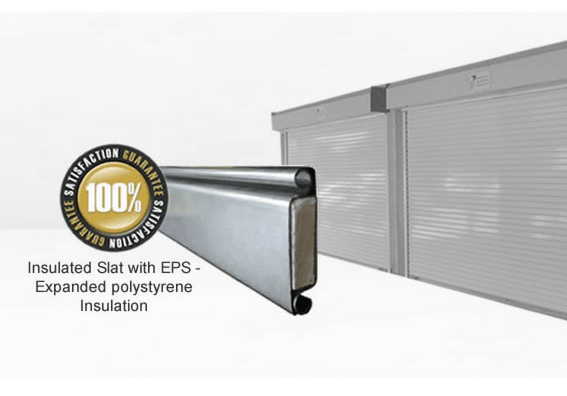

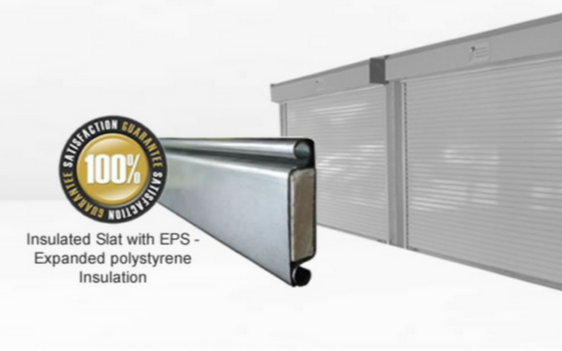

The insulated door curtains are constructed of 22 or 20-gauge front slat (according to case) and a 24 or 22-gauge back slat with a block of insulation that covers the complete length and width of each slat placed between.

Also we offer the option to use weather-strip, flexible vinyl, rubber, or neoprene in the guides to completely seal the door against the elements.

Get a Free Quote!

Components

A series of interlocking 20 or 22 gauge galvanized steel front slats and a 24 or 22-gauge back slat with a block of insulation that covers the complete length and width of each slat placed between, fitted with windlocks. A variety of finishes available include: galvanized steel, white, powder-coated paint and stainless steel.

Supports curtain and contains counterbalance torsion springs or band spring for assisting operation. Designed at 10,000 cycles, with the option up to 100,000 cycles for higher requirements.

Three-angle structural steel guides that support entire door weight and wind loads, while ensuring a smooth operation while opening and closing the door.

Protective sheet metal (24 gauge steel galvanized) enclosure for the curtain

3/16” or 1/4” steel plates to support the hood and counterbalance shaft.

Two galvanized steel angles with a protective weather-strip enforces the curtain and contains the locking mechanisms.

Insulated Garage Doors

Benefits

Our Insulated Roll up Door is tested and certified to perform on interior or exterior openings that need to maintain 2 different environments separate.
It also comes with guide a hood seals to prevent air infiltration that combined with insulated curtain minimizes the sound transmission.
Our doors design can be customized to meet your special project needs, custom colors, different mounting options and a huge variety of electric controls and operation are available, let us know what you need and we'll deliver.

Made in USA
  1. THERMAL CONTROL - Laboratory certified to perform thermal control with an R-Value of 8.0.
  2. LABORATORY TESTED AND CERTIFIED - Our HV-2670 and HV-1665 doors are laboratory tested and certified by the State of Florida to withstand high velocity hurricane winds and impact from debris. (Wind load designs up to ± 70 P.S.F.).
  3. RELIABLE PROTECTION - Provides reliable protection against robbery and vandalism, offering a high range of locking mechanisms.
  4. CUSTOM BUILT - Each door is custom built to exact opening size requirements and applications.
  5. SPACE OPTIMIZATION - Convenient space saving design: door coils upward without taking away useable space.
  6. LOW TO NO-MAINTENANCE COST! - Parts are built for heavy duty use and are tested to perform in the toughest environments.
  7. COMMERCIAL AND INDUSTRIAL USE - Ideal for warehouses, loading docks, stores, and many other types of buildings.

Make your project unique

As a Rolling Door Manufacturer with over 20 years in the market, we can meet any requirement. Contact us at!

Flexible Rates

Configure your project completely adapted to all your specific needs. You can contact us without any compromise.

+1 (305)-599.9977

Fast solutions

We develop all engineering and manufacturing processes in record time. Consult us.

Opening Hours

Please write your request and a sales representative will be contacting you shortly.

On Message feel free to include door quantities, desired clear opening width and height, door model, operation type (manual or electric), job location and as any other feature or details you are specifically looking for.

Our Clients

Thanks to our network and with the pass of the years our products had been placed in well know locations and brands that trust in Rolling Door Manufacturing.
